Product Overview

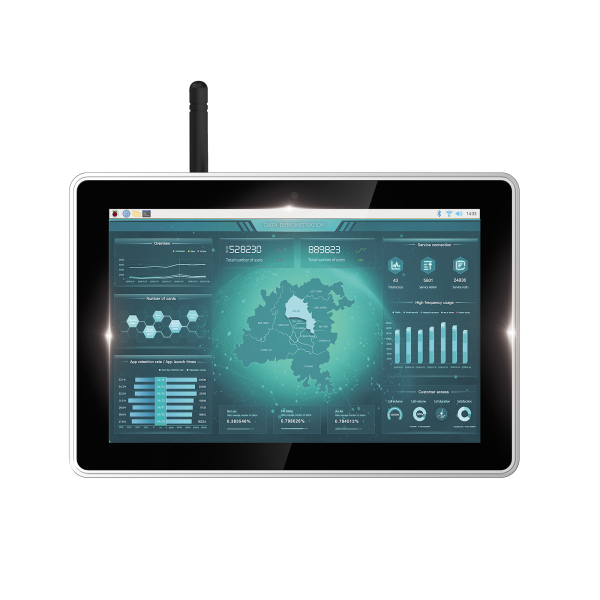

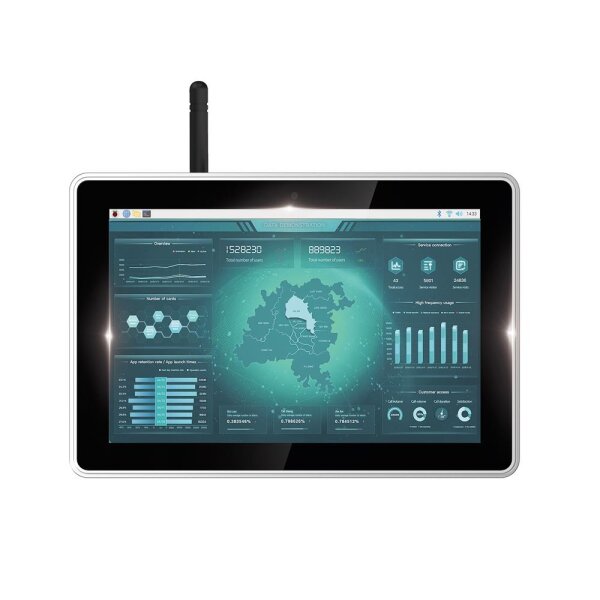

The EDATEC ED-HMI2120-101C-1208 is a 10.1-inch industrial HMI based on the Raspberry Pi Compute Module 4. It combines a touchscreen display with industrial interfaces, embedded or VESA mounting options and an enclosure design intended for series deployment. This makes the platform suitable for operator panels, visualisation, data acquisition and Raspberry Pi based industrial applications.
Technical Data
-
Display size: 10.1 inch
-
Resolution: 1280 × 800
-
Touch: Capacitive multi-touch
-
Processor: Broadcom BCM2711 quad-core Cortex-A72, 1.5 GHz
-
Memory: up to 8 GB LPDDR4 depending on version
-
Storage: eMMC, MicroSD and optional M.2 NVMe
-
Network: 2 × Ethernet, optional Wi-Fi/Bluetooth/4G
-
Serial interfaces: 4 × isolated RS232/RS485
-
Audio: audio in / stereo out, integrated speaker
-
Additional functions: RTC, watchdog, EEPROM, optional supercapacitor
-
Power supply: 9 V to 36 V DC
Notes
Wireless, 4G, camera and storage configuration depend on the selected variant.
Application Areas
Machine operation, process visualisation, data acquisition, industrial panels and field communication.
Product safety information
Manufacturer information:
EDA Technology Shanghai Co.,LTD
Room 301, Building 24, No.1661
Shanghai, China, 201899
support@edatec.cn
https://edatec.cn/
Responsible person:
Astradis Elektronik GmbH
Fraunhoferstraße 11a
Planegg, Deutschland, 82152
info@astradis.com
https://www.astradiselektronik.de/
| Item information |
Value |
| Display size: |
10.1" |
| Connectivity: |
WiFi |
