Product overview

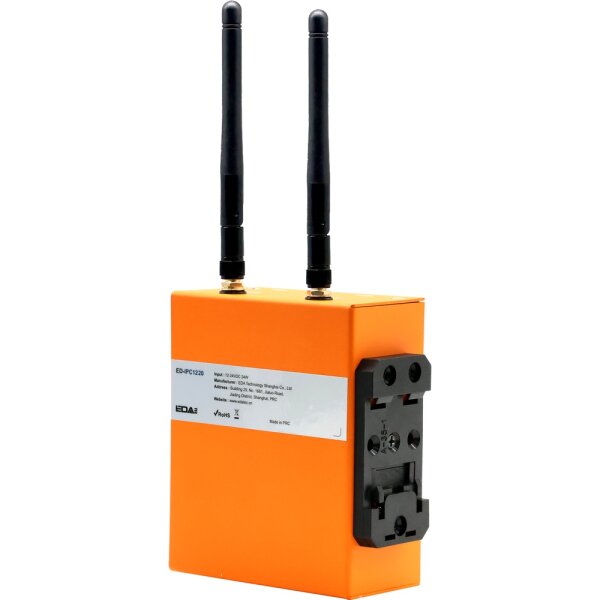

The EDATEC ED-IPC1220-10008-4EU is an industrial computer based on Raspberry Pi CM0 with extended digital and analogue I/O. It combines a 1 GHz quad-core 64-bit Arm Cortex-A53 processor, 512 MB SDRAM and 8 GB eMMC with eight digital inputs, eight digital outputs and analogue voltage and current inputs. This variant includes Wi-Fi/Bluetooth and the EC800K-EU 4G CAT1 module for Europe.
Technical specifications
- Manufacturer: EDATEC
- Model / HAN: ED-IPC1220-10008-4EU
- Platform: Raspberry Pi CM0
- Processor: 1 GHz quad-core 64-bit Arm Cortex-A53
- Memory: 512 MB SDRAM
- Storage: 8 GB eMMC
- 1 × USB 2.0 Type-A, up to 480 Mbps
- 1 × 10/100 Mbps Ethernet, RJ45
- 2 × RS485 via 3-pin 3.5 mm Phoenix terminals
- 1 × RS232 via 3-pin 3.5 mm Phoenix terminal
- 8 × digital inputs, wet contact (NPN), 3.75 kV isolation
- DI ON range: 5 to 30 V DC or -30 to -5 V DC
- 8 × digital outputs, sink type / NPN, 3.75 kV isolation
- DO output: 5 to 36 V DC, maximum 0.2 A per channel; 24 V DC recommended
- 2 × differential analogue voltage inputs, 0 to 10 V
- 2 × differential analogue current inputs, 0 to 20 mA
- Analogue resolution: 12-bit
- Analogue sampling rate: 3 kHz
- Analogue accuracy: ±0.1% full scale at 25 °C; ±0.3% from -20 °C to +60 °C
- 2.4 GHz Wi-Fi compliant with IEEE 802.11 b/g/n
- Bluetooth 5.0
- 4G CAT1: EC800K-EU (Europe)
- 4G bands: LTE FDD B1/B3/B5/B7/B8/B20/B28
- 1 × Nano SIM card slot
- RTC with 1 F supercapacitor as backup power supply
- Power input: 9 to 28 V DC via 2-pin 3.5 mm locking Phoenix terminal
- Reverse-polarity protection on the power input
- Power consumption: approximately 5 W
- Dimensions: 105 × 86 × 42 mm, excluding DIN-rail bracket and antennas
- Weight: approximately 435 g
- Operating temperature: -20 °C to +60 °C
- Installation: DIN rail
- Supported operating systems: Raspberry Pi OS Desktop and Lite, 32-bit and 64-bit
Notes
The digital inputs and outputs are organised in groups with shared COM terminals. The analogue inputs are differential; the voltage range is 0 to 10 V and the current range is 0 to 20 mA. According to EDATEC, this configuration is a standard-stock model with Wi-Fi/Bluetooth, 8 GB eMMC and a regional 4G module.
Applications
Suitable for industrial automation, sensor and measurement acquisition, machine and equipment connectivity, process monitoring, IoT gateways, remote monitoring and embedded control systems handling both digital and analogue signals.
