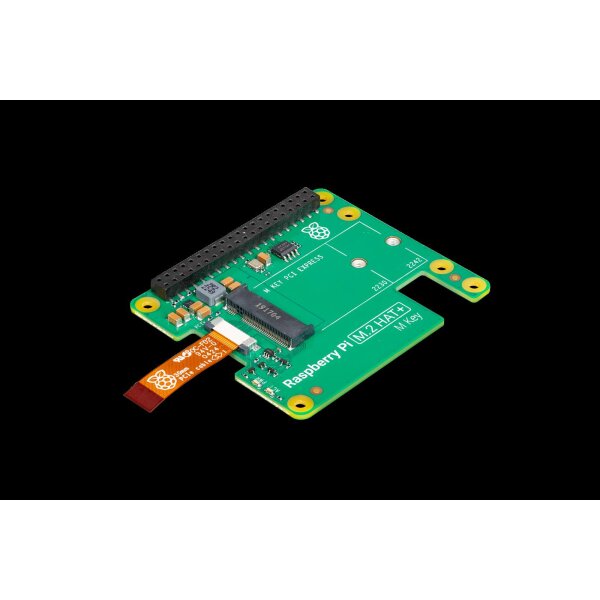

Raspberry Pi M.2 HAT+ – PCIe Expansion for M.2 Devices
The Raspberry Pi M.2 HAT+ enables high-speed connectivity to M.2 peripherals via the Raspberry Pi 5’s PCIe 2.0 interface. It converts the 16-pin FPC PCIe connector to an M-Key M.2 slot, supporting 2230 and 2242 devices such as NVMe SSDs or PCIe-based accelerators.
Key Features
- Supports single-lane PCIe 2.0 interface (up to 500MB/s)
- Compatible with M-Key M.2 devices (form factors 2230 and 2242)
- Supplies up to 3A to connected M.2 devices
- Power and activity status LEDs
- Compliant with the Raspberry Pi HAT+ specification (auto-detectable)
- Includes ribbon cable, 16mm stacking header, spacers, screws and mounting hardware
Note: Designed exclusively for use with Raspberry Pi 5 via the PCIe connector. Operate in a well-ventilated area and only with supported devices.
