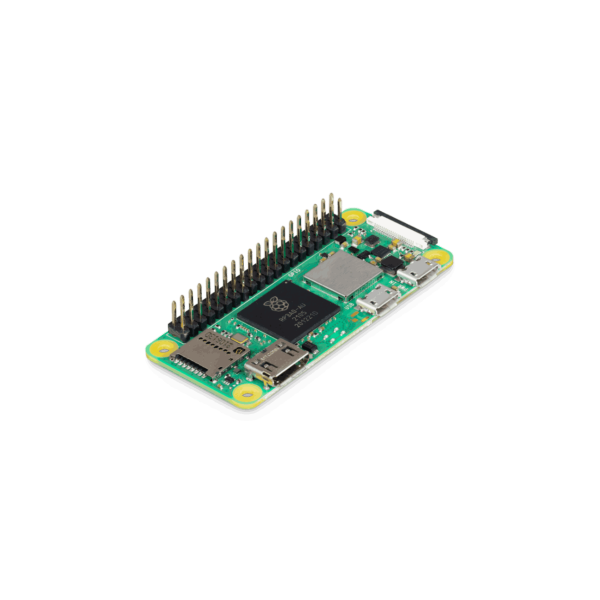

Raspberry Pi Zero 2 WH – Quad-Core Power with Pre-Soldered GPIOs
The Raspberry Pi Zero 2 WH combines the performance of the Zero 2 W with a pre-soldered 40-pin GPIO header – ideal for instant prototyping, learning, and quick deployment without soldering.
Powered by a 64-bit quad-core CPU, 512MB RAM, and equipped with Wi-Fi (802.11 b/g/n), Bluetooth 4.2, mini HDMI, and a CSI camera port, the Zero 2 WH delivers excellent performance in a tiny form factor.
Technical Specifications
- Processor: Broadcom BCM2710A1, quad-core 64-bit Cortex-A53 @ 1GHz
- Memory: 512MB LPDDR2 SDRAM
- Wireless: 2.4GHz Wi-Fi (802.11 b/g/n), Bluetooth 4.2, BLE
- Storage: microSD card slot
- Video: mini HDMI (up to 1080p30), composite via test points
- USB: 1× micro USB OTG, 1× micro USB power
- Camera: CSI-2 camera connector
- GPIO: 40-pin GPIO header (pre-soldered, HAT-compatible)
- Power input: 5V DC via micro USB (2.5A recommended)
- Form factor: 65mm × 30mm
- Operating temperature: –20°C to +70°C
The ideal choice for compact wireless Raspberry Pi projects – ready to use, no soldering required.
