Product Overview

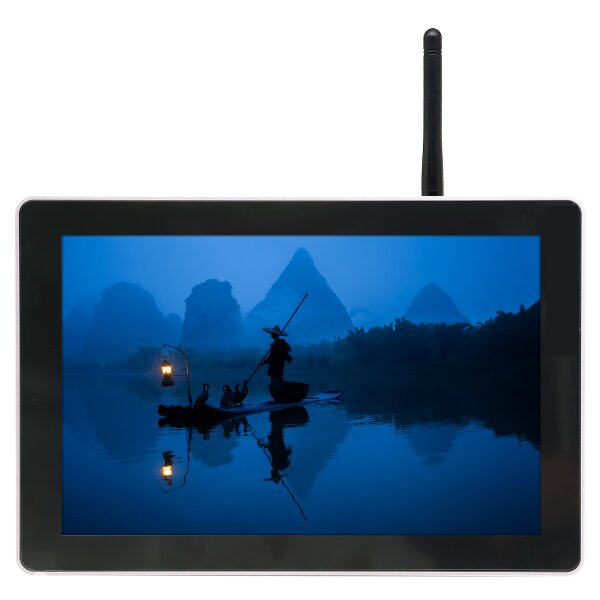

The EDATEC ED-HMI3120-070C-10432-S is a 7.0-inch industrial HMI based on the Raspberry Pi Compute Module 5. It combines a touchscreen display with industrial interfaces, embedded or VESA mounting options and an enclosure design intended for series deployment. This makes the platform suitable for operator panels, visualisation, data acquisition and Raspberry Pi based industrial applications.
Technical Data
-
Display size: 7.0 inch
-
Resolution: 1024 × 600
-
Touch: Capacitive multi-touch
-
Processor: Broadcom BCM2712 quad-core Cortex-A76, 2.4 GHz
-
Memory: 2 GB to 16 GB LPDDR4 depending on version
-
Storage: 16 GB to 64 GB eMMC, MicroSD and M.2 SSD
-
Network: 2 × Ethernet, optional Wi-Fi/Bluetooth/4G
-
Serial interfaces: 4 × isolated RS232/RS485
-
Audio: audio in / stereo out, integrated speaker
-
Additional functions: RTC, watchdog, EEPROM, optional supercapacitor
-
Power supply: 9 V to 36 V DC
Notes
The specific CM5 version as well as wireless, camera and cellular options differ depending on the population. Wi-Fi and Bluetooth are integrated or prepared depending on the version. Cellular connectivity and the regional band depend on the specific 4G variant. Supercapacitor back-up is integrated or prepared depending on the version.
Application Areas
Machine operation, process visualisation, data acquisition, industrial panels and high-performance embedded HMI applications.
