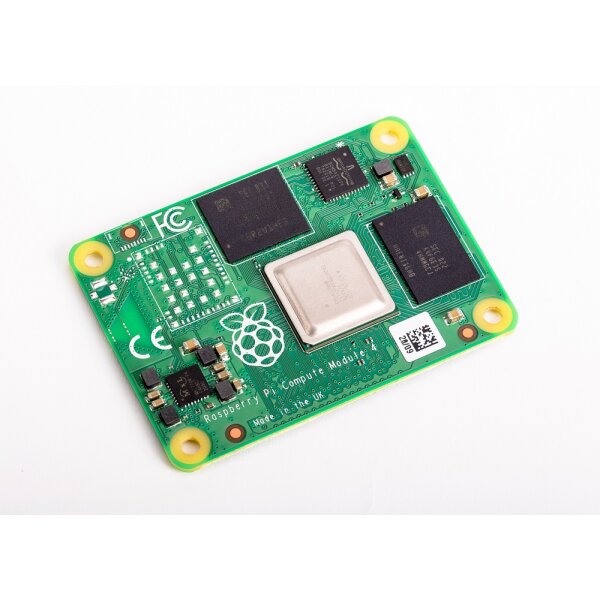

CM4004008 - Compute Module 4 Rev5
Raspberry Pi Compute Module 4 (CM4) as a system-on-module for embedded and industrial applications. Operation requires a compatible IO/carrier board.
Configuration
- RAM: 4 GB LPDDR4
- Flash: 8 GB eMMC
- Wireless: without radio module (no Wi-Fi/Bluetooth)
Technical specifications
- SoC/CPU: Broadcom BCM2711, quad-core Arm Cortex-A72 (64-bit) up to 1.5 GHz
- Form factor: 55 mm × 40 mm × 4.7 mm, 4× M2.5 mounting holes
- Networking: Gigabit Ethernet via external PHY (carrier-board dependent)
- PCIe: 1× PCIe Gen 2 x1 (carrier-board dependent)
- USB: 2× USB 2.0 (High Speed) via carrier board
- GPIO: up to 28 GPIO including UART/I2C/SPI/SDIO/I2S/PWM/GPCLK
- Video: 1× HDMI 2.0 (up to 4Kp60, carrier-board dependent)
- Camera/Display: 2× 2-lane MIPI (DSI/CSI-2)
- Multimedia: 4Kp60 HEVC decode; OpenGL ES 3.0
- Power supply: +5 V input (via carrier board)
- Operating temperature: −20 °C to +85 °C
- Production lifetime: in production until at least January 2034
Applications
The Raspberry Pi Compute Module 4 is suitable for a wide range of professional applications requiring a compact, proven and long-term available compute module. Typical use cases include industrial control systems, embedded platforms, IoT gateways, HMIs and customised serial products. The separation of compute module and carrier board allows flexible adaptation to project-specific requirements.
Notes
Peripherals, cables and power supplies must comply with the applicable standards in the destination country. Operate in a well-ventilated environment; avoid contact with conductive objects during operation.
Product safety information
Manufacturer information:
Raspberry Pi Ltd.
Cambridge Science Park, Milton Road 194
Cambridge, Vereinigtes Königreich, CB4 0AB
compliance@raspberrypi.com
https://www.raspberrypi.com
Responsible person:
Raspberry Pi Ireland Limited
Dublin Landings 3
North Wall Quay, Dublin 1, Irland, D01 C4E0
compliance@raspberrypi.com
https://www.raspberrypi.com
| Item information |
Value |
| RAM: |
4 GB |
Industry & Lifecycle Information
Lifecycle Status
Product status: Active
Market launch: October 2020
EOL announced: none
Expected production lifetime: until at least January 2034
Long-term availability until at least January 2034 supports planning reliability for industrial and embedded projects.
Product Change Notices (PCN)
Active PCNs: not documented
Latest known PCN: not documented
Functional impact: not documented
End-of-Life (EOL)
EOL notice published: No
Last Time Buy (LTB): –
Last Shipment Date (LSD): –
Current status: no end-of-life announced
The Compute Module 4 enables a wide range of industrial and embedded applications. Success stories provide insights into real-world projects and serve as inspiration for custom developments.
Support and information channels
Official documentation
Central technical reference including datasheets, design guides and product documentation.
Raspberry Pi Forum for Industries
Discussion platform for technical questions, known limitations and industrial use cases.
Datasheet
Technical specification of the Compute Module 4.
If questions remain...
Astradis Elektronik contact form
Direct point of contact as an approved Raspberry Pi reseller for application-specific enquiries and industrial project evaluations.
Disclaimer
The information provided in this document is based on the current data available from Raspberry Pi. Regular review of lifecycle information is recommended, especially for series production projects.
