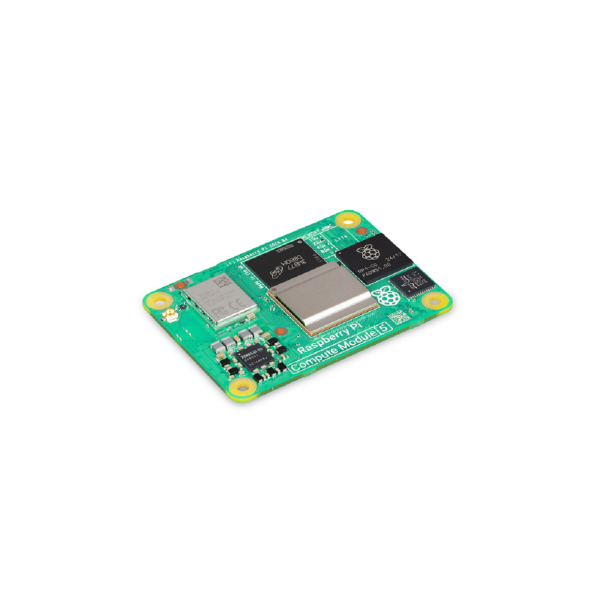

CM5004032 (Compute Module CM5, 4GB RAM/32GB eMMC, Non-Wireless)
Raspberry Pi Compute Module 5 (CM5) as a system-on-module for embedded and industrial applications. Operation requires a compatible IO/carrier board.
Configuration
- RAM: 4 GB LPDDR4-4267 (with ECC)
- Flash: 32 GB eMMC
- Wireless: without radio module (no Wi-Fi/Bluetooth)
Technical specifications
- SoC/CPU: Broadcom BCM2712, quad-core Arm Cortex-A76 (64-bit) up to 2.4 GHz
- Form factor: 55 mm × 40 mm × 4.7 mm, 4× M2.5 mounting holes
- Networking: Gigabit Ethernet PHY (IEEE 1588)
- PCIe: 1× PCIe x1 root complex, Gen 2 (5 Gbps)
- USB: 2× USB 3.0 (each 5 Gbps, simultaneous) + 1× USB 2.0 (High Speed)
- GPIO: up to 30 GPIO (1.8 V or 3.3 V) including UART/I2C/SPI/SDIO/DPI/I2S/PWM/GPCLK options
- Video: 2× HDMI 2.0 (up to 2× 4Kp60 simultaneously)
- Camera/Display: 2× 4-lane MIPI (DSI/CSI-2)
- Multimedia: 4Kp60 HEVC decode; OpenGL ES 3.1; Vulkan 1.2
- Power supply: +5 V input, USB-PD support up to 5 A @ 5 V
- Operating temperature: −20 °C to +85 °C
- Production lifetime: in production until at least January 2036
Applications
The Raspberry Pi Compute Module 5 is suitable for a wide range of professional applications requiring a powerful, compact and long-term available compute module. Typical use cases include industrial control systems, embedded platforms, IoT and edge-computing solutions, as well as customised serial products. By separating the compute module from the carrier board, the hardware can be optimally adapted to project-specific requirements, such as interfaces, form factor or power supply.
Notes
Peripherals, cables and power supplies must comply with the applicable standards in the destination country. Operate in a well-ventilated environment; avoid contact with conductive objects during operation.
Product safety information
Manufacturer information:
Raspberry Pi Ltd.
Cambridge Science Park, Milton Road 194
Cambridge, Vereinigtes Königreich, CB4 0AB
compliance@raspberrypi.com
https://www.raspberrypi.com
Responsible person:
Raspberry Pi Ireland Limited
Dublin Landings 3
North Wall Quay, Dublin 1, Irland, D01 C4E0
compliance@raspberrypi.com
https://www.raspberrypi.com
| Item information |
Value |
| RAM: |
4 GB |
Industry & Lifecycle Information
Lifecycle Status
Product status: Active
Market launch: November 2024
Product Change Notices (PCN)
Active PCNs: PCN 47 – Alternative sources of RAM (17 February 2026)
Last known PCN: PCN 47 – Alternative sources of RAM
Functional impact: None – qualified alternative RAM source; no mechanical or electrical changes; supported from firmware version dated 9 January 2026
End-of-Life (EOL)
EOL notice published: Yes
Last Time Buy (LTB): still open
Last Shipment Date (LSD): currently expected no earlier than January 2036
Current status: Active product with announced EOL; the product remains in active status and end-of-life is currently expected no earlier than 2036
The Compute Module 5 enables a wide range of industrial and embedded applications. Success stories provide insights into real-world projects and serve as inspiration for customised developments.
Support and Information Channels
Official documentation
Central technical reference including datasheets, design guides and product documentation.
Raspberry Pi Forum for Industries
Platform for technical discussions, known limitations and industrial application examples.
Product page
Technical detailed description of the Compute Module 5.
If you have any questions …
Astradis Elektronik contact form
Direct contact as an Approved Reseller of Raspberry Pi for application-related enquiries and project evaluations in industrial environments.
Note
The information in this document is based on the currently available data from Raspberry Pi. Regular review of lifecycle information is recommended, especially for series production projects.
