IO Board for Raspberry Pi Compute Module 5

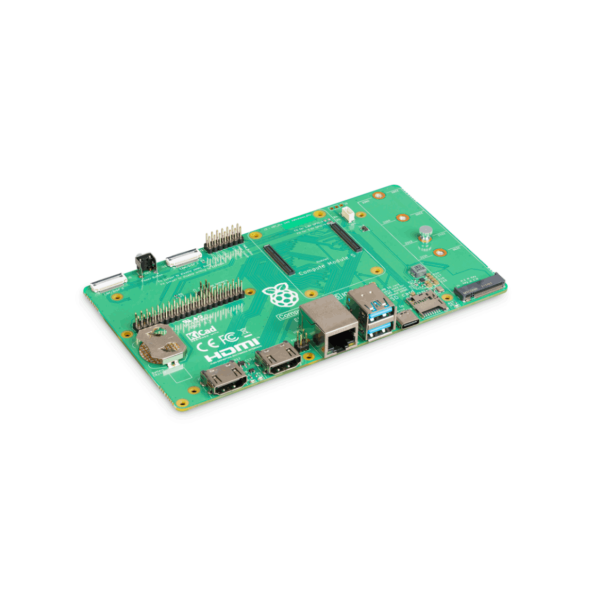

The Compute Module 5 IO Board provides full interface breakout for Raspberry Pi Compute Module 5, serving both as a development platform and an alternative industrial form factor.
Comprehensive Connectivity for Advanced Use Cases
- 2× HDMI 2.0 (full-size)
- 2× USB 3.0 ports
- Gigabit Ethernet with PoE+ HAT+ support
- microSD card slot (for Lite variants)
- M.2 M-key PCIe slot for SSDs
- 40-pin GPIO header & HAT+ connector
- 2× MIPI DSI/CSI-2 (22-pin, 0.5mm pitch)
- 4-pin fan header with PWM control
- RTC battery socket & power button
Technical Specifications
- Dimensions: 160×90mm
- Input: +5V via USB-C power supply
- Compatible with all CM5 models
Note: Ideal for developers looking to harness the full potential of the Compute Module 5. Available as a reference design in KiCad format.
