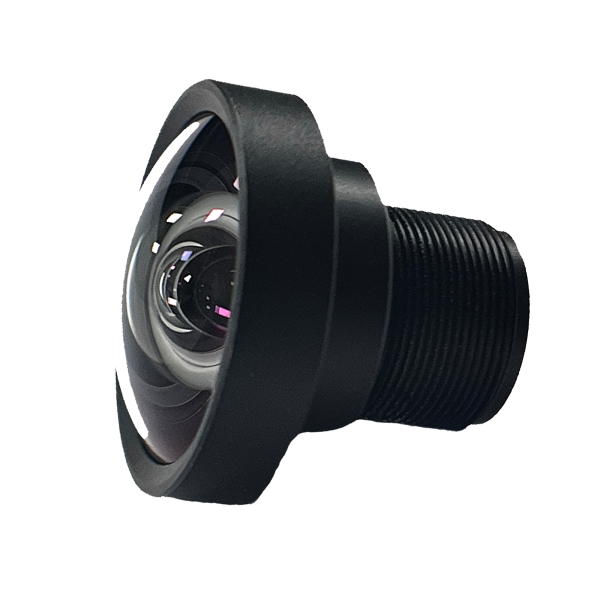

EDATEC 1/2.3'' M12 Mount 2.20mm Focal Length Wide Range Camera Lens 230220-08

SKU: JTL112495
HAN: ED-LENS-M12-230220-08
Category: Industrial
Manufacturers: Edatec

The EDATEC ED-LENS-M12-230220-08 is a 8-megapixel M12×P0.5 lens with 2.2mm focal length for cameras with an M12×P0.5 mount. It is designed for 1/2.3" sensors and provides a horizontal field of view of 112° on that format. With its F1.8 aperture and compact design, the lens is suitable for industrial imaging, embedded vision systems and demanding camera applications.

€ 9,41

incl. 19% VAT , plus

Delivery time on request

Description
Notify me when this item is available

Product Overview

The EDATEC ED-LENS-M12-230220-08 is a compact 1/2.3" M12×P0.5 lens with 8 megapixel resolution and an effective focal length of 2.2mm. It is designed for camera modules with an M12×P0.5 mount and provides a horizontal field of view of 112° on 1/2.3" sensors. With its F1.8 aperture, manual focus and compact mechanical design, it is suitable for industrial cameras, embedded vision applications and custom imaging systems.

Technical Data

Resolution: 8 megapixel
Optical format: 1/2.3"
Focal length: 2.2mm
Aperture: F1.8
Mount: M12×P0.5
Horizontal field of view: 112°
Focusing: Manual
Dimensions: Φ22×20.98
Weight: 9.3 g
Operating temperature: -30ºC to +75ºC

Notes

Suitability regarding sensor format, working distance and field of view should be checked against the camera module used before final selection. Actual imaging results also depend on the sensor, installation environment and lighting conditions.
