Product overview

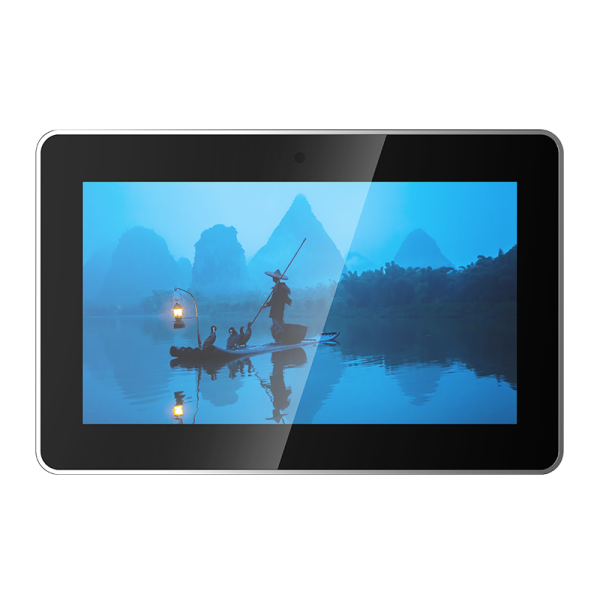

The EDATEC ED-HMI3010-070C-0432 is a compact industrial HMI based on Raspberry Pi 5. This configuration includes a Raspberry Pi 5 with 4 GB LPDDR4X memory and a 32 GB SD card. The 7.0-inch TFT display with capacitive multi-touch functionality is suitable for operator interfaces, machine control, visualisation and IoT applications.
The robust metal enclosure is designed for front-panel installation. Its fanless construction provides passive heat dissipation for industrial applications.
Technical specifications
- Manufacturer: EDATEC
- Model: ED-HMI3010-070C-0432
- Platform: Raspberry Pi 5
- Processor: Broadcom BCM2712, 2.4 GHz quad-core Arm Cortex-A76
- Memory: 4 GB LPDDR4X
- Storage: 32 GB SD card
- Display: 7.0-inch TFT
- Resolution: 1024 × 600 pixels
- Touchscreen: capacitive multi-touch with up to 5 touch points
- Touch surface hardness: 6H
- Brightness: 400 cd/m²
- Contrast ratio: 800:1
- 2 × USB 3.0 Type-A
- 2 × USB 2.0 Type-A
- 1 × Gigabit Ethernet, RJ45
- 2 × Micro HDMI supporting 4K at 60 Hz
- 1 × Micro SD card slot
- Internal PCIe 2.0 interface
- Internal interface for optional PoE module
- Wi-Fi: dual-band 802.11ac
- Bluetooth 5.0 / Bluetooth Low Energy
- Power input: 5 V DC via USB-C, up to 5 A
- Maximum power consumption: 25 W
- Dimensions: 188 × 123 × 39 mm
- Weight: approximately 800 g
- Operating temperature: -20 °C to +60 °C
- Installation: embedded front-panel installation
Notes
The ED-HMI3010-070C-0432 includes a Raspberry Pi 5 with 4 GB RAM and a 32 GB SD card. This configuration does not include the optional front camera. Raspberry Pi OS 64-bit is supported. Power is supplied via USB-C; a suitable power supply should be selected according to the application requirements.
Applications
The ED-HMI3010-070C-0432 is suitable for industrial operator panels, machine and equipment control, IoT gateways, building automation, data acquisition, visualisation and customised Raspberry Pi 5 based embedded systems.
