Product Overview

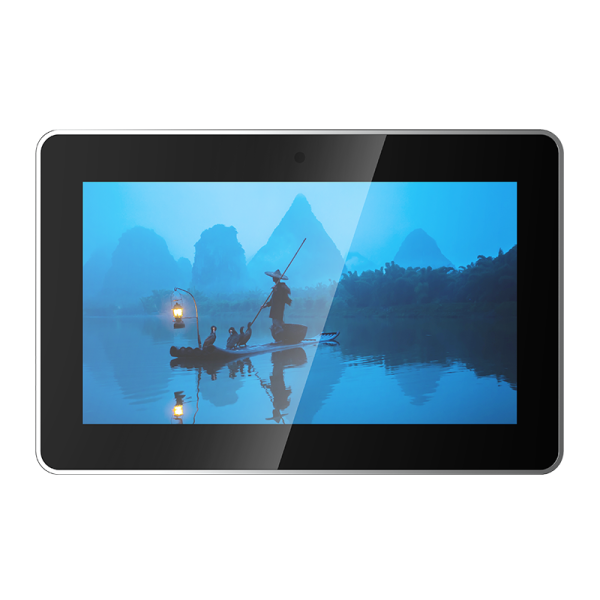

The EDATEC ED-HMI3010-070C-0032 is a 7.0-inch industrial HMI based on the Raspberry Pi 5. It combines a touchscreen display with industrial interfaces, embedded or VESA mounting options and an enclosure design intended for series deployment. This makes the platform suitable for operator panels, visualisation, data acquisition and Raspberry Pi based industrial applications.
Technical Data
-
Display size: 7.0 inch
-
Resolution: 1024 × 600
-
Touch: Capacitive multi-touch
-
Processor: Broadcom BCM2712 quad-core Cortex-A76, 2.4 GHz
-
Memory: 4 GB to 16 GB LPDDR4X depending on version
-
Storage: 32 GB or 64 GB MicroSD depending on variant
-
Network: 1 × Gigabit Ethernet
-
USB: 2 × USB 3.0, 2 × USB 2.0
-
Video: Dual 4Kp60 HDMI
-
Options: optional 8 MP front camera, PCIe/PoE reserved
-
Power supply: 5 V DC via USB-C
Notes
Depending on the variant, the system is supplied with or without a Raspberry Pi 5 and with or without a pre-installed SD card.
Application Areas
Machine operation, visualisation, test rigs, embedded HMI systems and Raspberry Pi 5 based operator interfaces.
