Product Overview

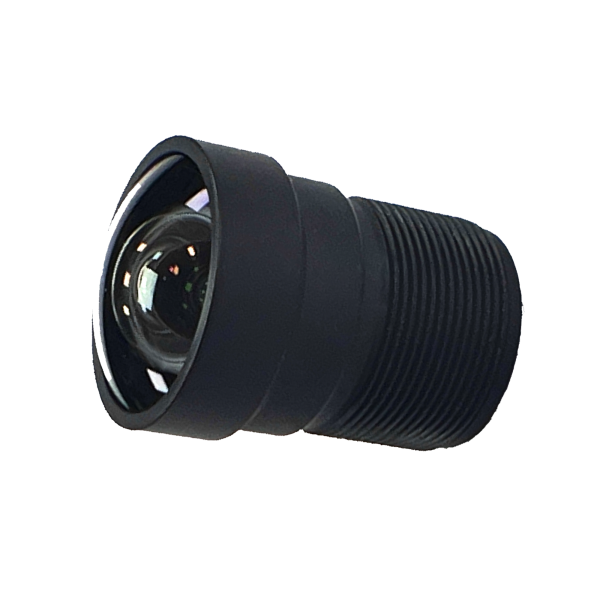

The EDATEC ED-LENS-M12-230325-12 is a compact 1/2.3" M12×P0.5 lens with 12 megapixel resolution and an effective focal length of 3.25mm. It is designed for camera modules with an M12×P0.5 mount and provides a horizontal field of view of 88.5° on 1/2.3" sensors. With its F2.6 aperture, manual focus and compact mechanical design, it is suitable for industrial cameras, embedded vision applications and custom imaging systems.
Technical Data
-
Resolution: 12 megapixel
-
Optical format: 1/2.3"
-
Focal length: 3.25mm
-
Aperture: F2.6
-
Mount: M12×P0.5
-
Horizontal field of view: 88.5°
-
Focusing: Manual
-
Minimum object distance: 0.3m
-
Dimensions: Φ14×19
-
Weight: 6 g
-
Operating temperature: -30ºC to +75ºC
Notes
Suitability regarding sensor format, working distance and field of view should be checked against the camera module used before final selection. Actual imaging results also depend on the sensor, installation environment and lighting conditions.
Application Areas
Industrial imaging, embedded vision systems, quality inspection, automation, robotics and custom camera developments.
