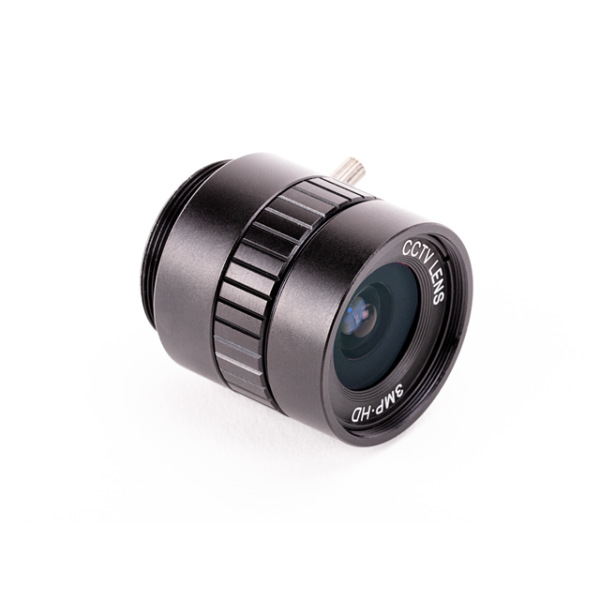

Raspberry Pi CS-Mount Lens – 6mm / 3MP (PT361060M3MP12)
The CS-Mount 6mm wide-angle lens (model PT361060M3MP12) is an official accessory for the Raspberry Pi High Quality Camera. Featuring a 6mm focal length, 3megapixel optimized performance, and a bright F1.2 aperture, it's ideal for surveillance, robotics, or wide-scene photography.
Key Features
- Focal length: 6mm
- Max resolution: 3MP (designed for work with 12MP HQ camera sensor)
- Lens mount: CS-Mount (C-Mount compatible with adapter)
- Field of view: ~63° diagonal (1/2 sensor)
- Aperture: F1.2 (adjustable down to F16)
- Minimum object distance: approx. 0.2m
- Housing size: Ø30×34mm, Weight ~53g
Technical Specifications
- Image format supported: 1/2 sensor
- Bright aperture ideal for low-light
- Manual focus via CS screw thread
- Low-distortion optics optimized for fast-moving scenes
Note: Compatible only with the Raspberry Pi High Quality Camera CS-Mount version. A separate adapter is required for C-Mount lenses.
