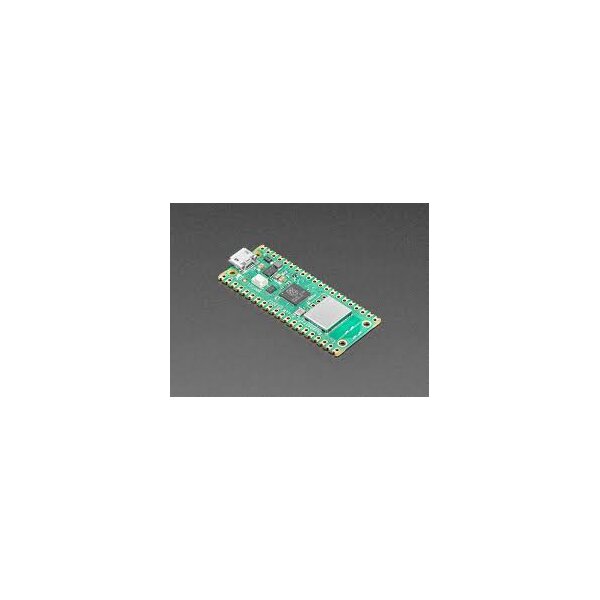

Raspberry Pi Pico H – Pico with Pre-Soldered Headers for Instant Prototyping
The Raspberry Pi Pico H features the same performance as the original Pico, enhanced with pre-soldered header pins for immediate use on breadboards and prototyping boards – no soldering needed.
It is built around the RP2040 dual-core Arm Cortex-M0+ microcontroller with 264KB SRAM and 2MB QSPI flash, making it ideal for control systems, sensors, and educational projects.
Technical Specifications
- Processor: Dual-core Arm Cortex-M0+ @ 133MHz
- Memory: 264KB SRAM
- Flash: 2MB QSPI
- GPIO: 26 multifunction pins including 3 ADCs (all with headers)
- Interfaces: 2× UART, 2× SPI, 2× I²C, 16× PWM channels, USB 1.1 (device only)
- PIO: 2× PIO blocks with 8 total state machines
- Input voltage: 1.8–5.5V DC
- Form factor: 21mm × 51mm
- Operating temperature: –20°C to +85°C
- Extras: 3-pin JST-SH debug connector (SWD)
An ideal solution for anyone who wants to start right away – no soldering required.
