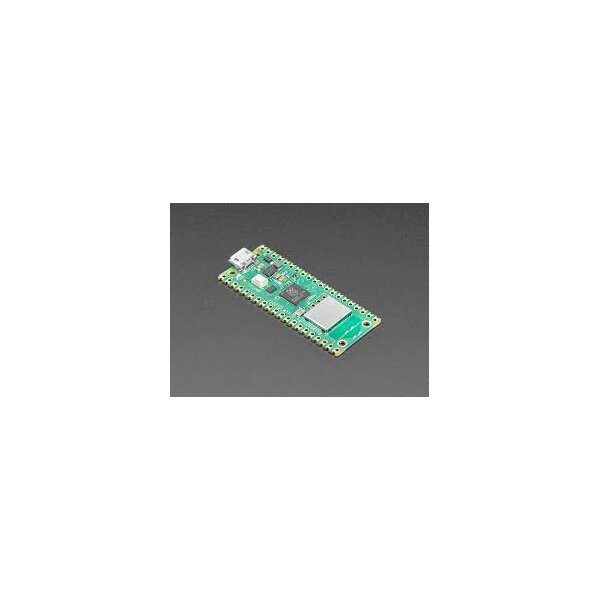

Raspberry Pi Pico – Your Gateway to Microcontroller Development
The Raspberry Pi Pico is an affordable and capable microcontroller board designed for makers, educators, and embedded applications. Based on the RP2040 dual-core Arm Cortex-M0+ processor, it provides a solid platform for control and sensor tasks.
With 264KB SRAM and 2MB QSPI flash, the Pico is suited for a variety of use cases – from signal processing and motor control to sensor integration and user interfaces. It can be programmed in C/C++ or MicroPython.
Technical Specifications
- Processor: Dual-core Arm Cortex-M0+ @ 133 MHz
- Memory: 264KB SRAM
- Flash: 2MB QSPI flash
- GPIO: 26 multifunctional pins, 3 of which support ADC
- Interfaces: 2× UART, 2× SPI, 2× I²C, 16× PWM channels, USB 1.1 (device only)
- 2× PIO instances with a total of 8 state machines
- Input voltage: 1.8–5.5V DC
- Form factor: 21mm × 51mm
- Operating temperature: –20°C to +85°C
An ideal microcontroller for affordable projects, learning environments, and embedded system designs.
