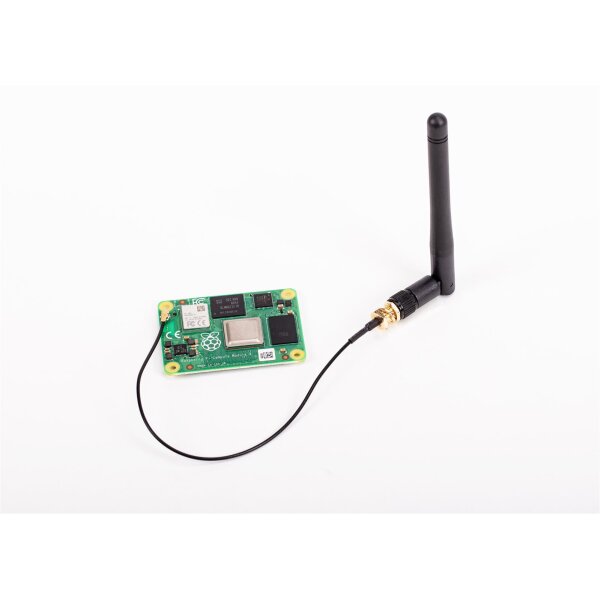

Official Antenna Kit for Raspberry Pi Compute Module 4 and 5
The Raspberry Pi Antenna Kit is designed for wireless-enabled versions of the Compute Module 4 (CM4) and Compute Module 5 (CM5). It enables stable connectivity over 2.4GHz and 5.0GHz Wi-Fi as well as Bluetooth 5.0.
High-quality Antenna and Cable
Included is a 2dBi omnidirectional antenna for optimal signal reception. The U.FL to SMA cable ensures secure connection to the module and can be mounted on IO boards or enclosures.
Technical Specifications
- Frequency ranges: 2.4GHz (2400–2500MHz), 5GHz (5100–5800MHz)
- Impedance: 50O, Gain: 2dBi, VSWR = 2.0
- Radiation: omnidirectional
- Connectors: U.FL (module side) to SMA (antenna side)
- Cable length: 205mm, outer diameter: 1.37mm
Kit Contents
- 1× Antenna (SMA female)
- 1× U.FL to SMA male cable with mounting hardware
Note: Only for use with Compute Modules featuring integrated wireless. Using third-party antennas requires separate certification.
