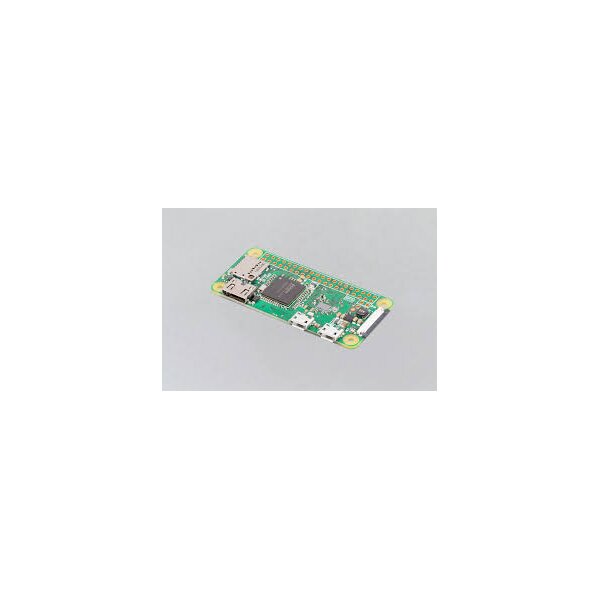

Raspberry Pi Zero W – Compact Pi with Built-in Wi-Fi and Bluetooth
The Raspberry Pi Zero W adds wireless connectivity to the original Zero form factor: Built-in 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 4.1 with BLE make it perfect for IoT, sensors, and remote control systems.
It keeps the minimalist footprint with a 1GHz single-core processor, 512MB RAM, mini HDMI, USB OTG, CSI camera connector and an unpopulated 40-pin GPIO header – giving you big possibilities in a tiny board.
Technical Specifications
- Processor: Broadcom BCM2835, 1GHz single-core Arm11
- Memory: 512MB LPDDR2 SDRAM
- Wi-Fi: 2.4GHz 802.11 b/g/n
- Bluetooth: 4.1 with BLE
- USB: 1× Micro-USB OTG, 1× Micro-USB for power
- Video: Mini HDMI up to 1080p60, composite via test points
- Storage: microSD card slot
- Camera: CSI camera connector
- GPIO: 40-pin unpopulated header
- Power input: 5V DC via Micro-USB
- Form factor: 65mm × 30mm
An ideal single-board computer for small, connected, low-power applications.
