Product Overview

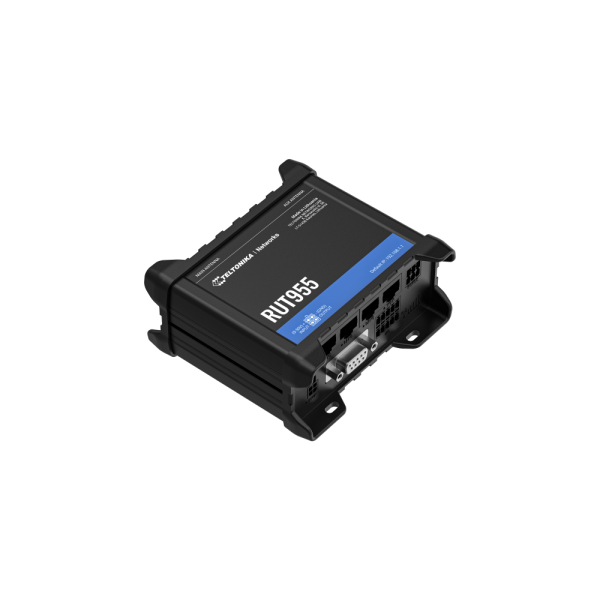

The Teltonika RUT955 is an industrial 4G LTE router supporting LTE Cat 4 (up to 150 Mbps download / 50 Mbps upload) with 3G/2G fallback. Featuring dual SIM with automatic failover, integrated digital inputs and outputs, serial interfaces (RS232/RS485) and GNSS support, it is suitable for demanding industrial and infrastructure deployments. Its robust aluminium housing and wide input voltage range allow operation in harsh environments.
Technical Specifications
-
Cellular: 4G LTE Cat 4 (up to 150/50 Mbps), 3G/2G fallback
-
SIM: 2 × Mini SIM (2FF) with automatic failover
-
Ethernet: 4 × 10/100 Mbps RJ45 (1 × WAN, 3 × LAN)
-
WiFi: IEEE 802.11 b/g/n (2.4 GHz), Access Point & Client mode
-
Processor: Qualcomm Atheros QCA9531, 650 MHz
-
Memory: 128 MB RAM
-
Storage: 16 MB flash
-
GNSS: GPS
-
I/O: 4 × digital input, 2 × digital output
-
Interfaces: RS232, RS485
-
Operating system: RutOS (Linux-based, OpenWrt architecture)
-
VPN support: OpenVPN, IPsec, GRE, PPTP, L2TP, WireGuard and others
-
Management: WebUI (HTTP/HTTPS), SSH, SNMP, MQTT, RMS support
-
Power supply: 9–30 V DC (4-pin industrial connector), passive PoE via LAN1 supported
-
IP rating: IP30
-
Operating temperature: −40 °C to +75 °C
Notes
Suitable LTE antennas are required for cellular operation. Passive PoE is not compatible with IEEE 802.3af/at/bt. Actual throughput depends on coverage, subscription and radio conditions.
Applications
Suitable for industrial remote access, telemetry, machine connectivity, energy and environmental monitoring, transport systems, IoT gateways and applications requiring serial interfaces and extended I/O capabilities.
