Product Overview

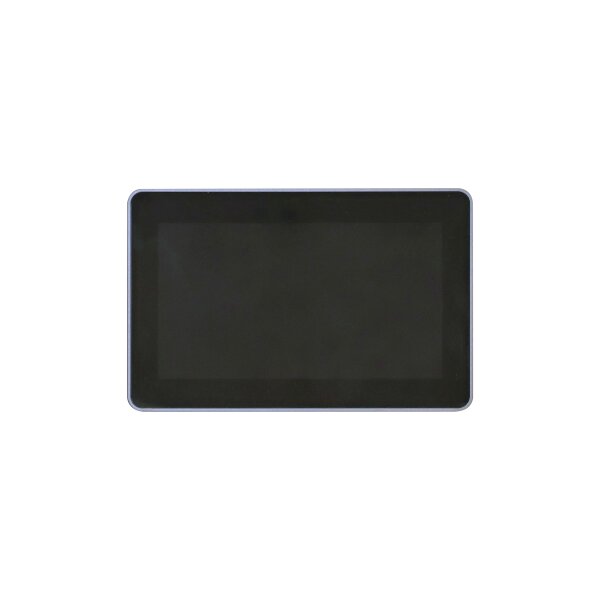

The EDATEC ED-HMI2002-070C-0000 is a 7.0-inch industrial HMI based on the Raspberry Pi 4. It combines a touchscreen display with industrial interfaces, embedded or VESA mounting options and an enclosure design intended for series deployment. This makes the platform suitable for operator panels, visualisation, data acquisition and Raspberry Pi based industrial applications.
Technical Data
-
Display size: 7.0 inch
-
Resolution: 1024 × 600
-
Touch: Capacitive multi-touch
-
Processor: Broadcom BCM2711 quad-core Cortex-A72, 1.8 GHz
-
Memory: up to 8 GB LPDDR4 depending on version
-
Storage: 32 GB or 64 GB MicroSD depending on variant
-
Network: 1 × Gigabit Ethernet
-
USB: 2 × USB 3.0, 2 × USB 2.0
-
Video: Dual 4Kp60 HDMI
-
Options: optional 8 MP front camera, VESA mounting
-
Power supply: 5 V DC via USB-C
Notes
Storage population and the optional front camera depend on the specific version. This variant is supplied without a pre-installed Raspberry Pi board. A storage card is not included in this version.
Application Areas
Machine operation, industrial visualisation, test rigs, kiosk systems and Raspberry Pi 4 based HMI applications.
Product safety information
Manufacturer information:
EDA Technology Shanghai Co.,LTD
Room 301, Building 24, No.1661
Shanghai, China, 201899
support@edatec.cn
https://edatec.cn/
Responsible person:
Astradis Elektronik GmbH
Fraunhoferstraße 11a
Planegg, Deutschland, 82152
info@astradis.com
https://www.astradiselektronik.de/
