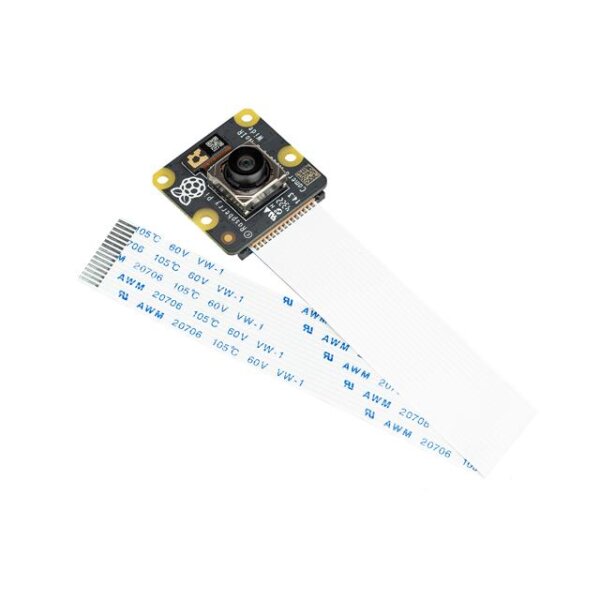

Raspberry Pi Camera Module 3 – NoIR
The Camera Module 3 NoIR uses the same Sony IMX708 12.3MP sensor as the standard model, but lacks an infrared cut filter, making it sensitive to both visible and infrared light. With autofocus and HDR support, it is ideal for night vision, IR photography, and scientific projects involving invisible spectra.
Key Features
- 12.3MP back-illuminated sensor (Sony IMX708)
- No IR-cut filter – captures visible and infrared light
- Phase detection autofocus (PDAF)
- HDR support (up to 3MP)
- Standard lens: 75° diagonal field of view
- Focus range: 10cm to 8
- Focal length: 4.74mm / Aperture: F1.8
- Resolution: 4608×2592 pixels (RAW10)
- Video modes: 1080p50, 720p100, 480p120
- Includes 200mm FPC ribbon cable
Technical Specifications
- Pixel size: 1.4µm × 1.4µm
- Module dimensions: 25×24×11.5mm
- Interface: 15-pin CSI (1mm pitch)
- Operating temperature: 0°C to +50°C
- Production guaranteed until at least January 2030
Note: Designed for infrared-sensitive use. For best results, combine with external IR lighting such as LED arrays.
