Product Overview

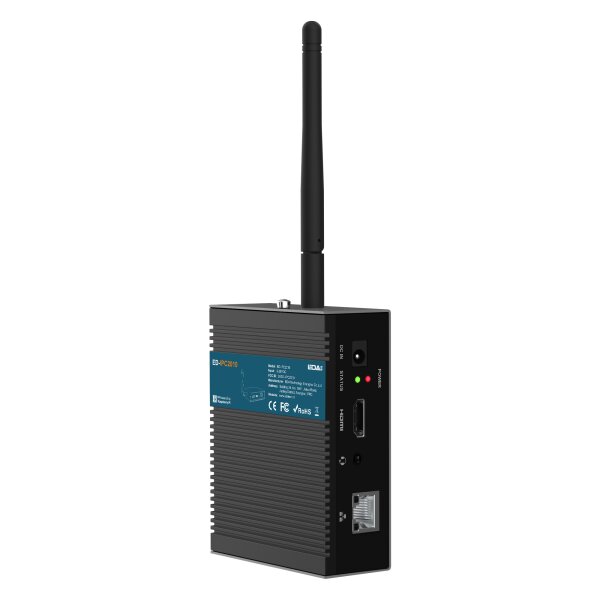

The EDATEC ED-IPC2010-1208 is an industrial computer based on the Raspberry Pi Compute Module 4 for industrial control, edge computing and IoT gateway applications. Depending on the series, the platform provides different communication, I/O and storage options in a metal enclosure with DIN-rail mounting. With its wide DC input range, industrial interfaces and optional wireless expansion, the system is suited to demanding industrial environments.
Technical Data
-
Processor: Broadcom BCM2711 quad-core Cortex-A72, 1.5 GHz
-
Power supply: 9 V to 28 V DC
-
Mounting: DIN-rail, metal enclosure
-
Memory: 1 GB to 8 GB LPDDR4 depending on version
-
Storage: 8 GB to 32 GB eMMC, MicroSD expansion
-
Network: 1 × Gigabit Ethernet, optional Wi-Fi/Bluetooth
-
Video: 1 × HDMI
-
Audio: model dependent
-
Additional functions: RTC, EEPROM, security chip
Notes
The exact interface population depends on the specific sub-version within the IPC2000 series.
Application Areas
Industrial control, compact IoT gateways, machine connectivity, data acquisition and embedded visualisation.
