Product Overview

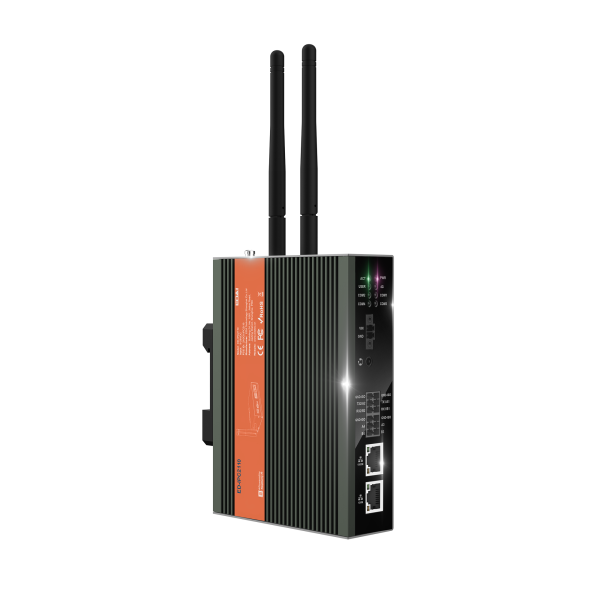

The EDATEC ED-IPC2110-1208 is an industrial computer based on the Raspberry Pi Compute Module 4 for industrial control, edge computing and IoT gateway applications. Depending on the series, the platform provides different communication, I/O and storage options in a metal enclosure with DIN-rail mounting. With its wide DC input range, industrial interfaces and optional wireless expansion, the system is suited to demanding industrial environments.
Technical Data
-
Processor: Broadcom BCM2711 quad-core Cortex-A72, 1.5 GHz
-
Power supply: 9 V to 36 V DC
-
Mounting: DIN-rail, metal enclosure
-
Memory: 1 GB to 8 GB LPDDR4 depending on version
-
Storage: 8 GB to 32 GB eMMC, MicroSD and M.2 NVMe
-
Network: 2 × Ethernet (1 × Gigabit, 1 × 100M), optional Wi-Fi/Bluetooth/4G
-
Serial interfaces: 4 × isolated RS232/RS485
-
Additional functions: RTC, watchdog, EEPROM, optional supercapacitor
Notes
Audio, wireless modules and cellular connectivity are available depending on the specific version.
Application Areas
Industrial communication, control cabinet PCs, IoT gateways, data acquisition and remote maintenance.
