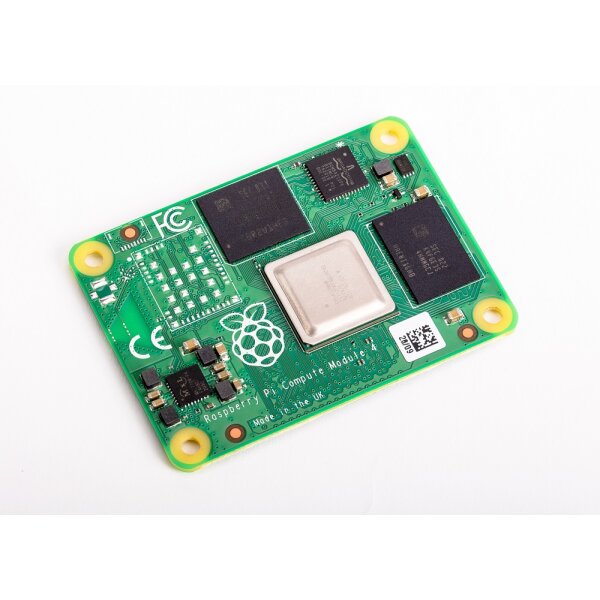

CM4008000 - Compute Module 4 Rev5
Raspberry Pi Compute Module 4 (CM4) as a system-on-module for embedded and industrial applications. Operation requires a compatible IO/carrier board.
Configuration
- RAM: 8 GB LPDDR4
- Flash: Lite variant without eMMC
- Wireless: without radio module (no Wi-Fi/Bluetooth)
Technical specifications
- SoC/CPU: Broadcom BCM2711, quad-core Arm Cortex-A72 (64-bit) up to 1.5 GHz
- Form factor: 55 mm × 40 mm × 4.7 mm, 4× M2.5 mounting holes
- Networking: Gigabit Ethernet via external PHY (carrier-board dependent)
- PCIe: 1× PCIe Gen 2 x1 (carrier-board dependent)
- USB: 2× USB 2.0 (High Speed) via carrier board
- GPIO: up to 28 GPIO including UART/I2C/SPI/SDIO/I2S/PWM/GPCLK
- Video: 1× HDMI 2.0 (up to 4Kp60, carrier-board dependent)
- Camera/Display: 2× 2-lane MIPI (DSI/CSI-2)
- Multimedia: 4Kp60 HEVC decode; OpenGL ES 3.0
- Power supply: +5 V input (via carrier board)
- Operating temperature: −20 °C to +85 °C
- Production lifetime: in production until at least January 2034
Applications
The Raspberry Pi Compute Module 4 is suitable for a wide range of professional applications requiring a compact, proven and long-term available compute module. Typical use cases include industrial control systems, embedded platforms, IoT gateways, HMIs and customised serial products. The separation of compute module and carrier board allows flexible adaptation to project-specific requirements.
Notes
Peripherals, cables and power supplies must comply with the applicable standards in the destination country. Operate in a well-ventilated environment; avoid contact with conductive objects during operation.
Product safety information
Manufacturer information:
Raspberry Pi Ltd.
Cambridge Science Park, Milton Road 194
Cambridge, Vereinigtes Königreich, CB4 0AB
compliance@raspberrypi.com
https://www.raspberrypi.com
Responsible person:
Raspberry Pi Ireland Limited
Dublin Landings 3
North Wall Quay, Dublin 1, Irland, D01 C4E0
compliance@raspberrypi.com
https://www.raspberrypi.com
| Item information |
Value |
| RAM: |
8 GB |
"
Industry & Lifecycle Information
Lifecycle Status
Product status: Active
Market launch: October 2020
Product Change Notices (PCN)
Active PCNs: PCN 5 – Compute Module 4, Release 5 (6 December 2021)
Last known PCN: PCN 5 – Compute Module 4, Release 5
Functional impact: Change of PMIC (DA9090) and PCB revision from 3 to 5; no form-fit-function change; supported from firmware version July 2021
End-of-Life (EOL)
EOL notice published: Yes
Last Time Buy (LTB): still open
Last Shipment Date (LSD): currently expected no earlier than January 2034
Current status: Active product with announced EOL; the product remains in active status and end-of-life is currently expected no earlier than 2034
The Compute Module 4 enables a wide range of industrial and embedded applications. Success stories provide insights into real-world projects and serve as inspiration for customised developments.
Support and Information Channels
Official documentation
Central technical reference including datasheets, design guides and product documentation.
Raspberry Pi Forum for Industries
Platform for technical discussions, known limitations and industrial application examples.
Datasheet
Technical detailed description of the Compute Module 4.
If you have any questions …
Astradis Elektronik contact form
Direct contact as an Approved Reseller of Raspberry Pi for application-related enquiries and project evaluations in industrial environments.
Note
The information in this document is based on the currently available data from Raspberry Pi. Regular review of lifecycle information is recommended, especially for series production projects.
"
