Product Overview

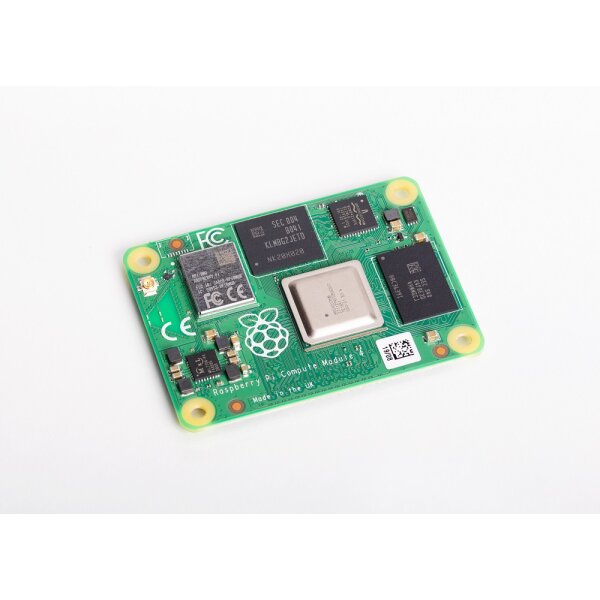

The Raspberry Pi Compute Module 4 (CM4104032) combines 4GB RAM, 32GB eMMC flash, and built-in dual-band Wi-Fi (2.4/5GHz) and Bluetooth 5.0. This configuration is ideal for embedded and connected applications requiring high memory, fast storage, and wireless flexibility – such as smart gateways, multimedia platforms, industrial controllers, or high-performance IoT devices.
Technical Specifications
-
Processor: Broadcom BCM2711, quad-core Cortex-A72 (64-bit) @ 1.5GHz
-
Memory: 4GB LPDDR4-3200 SDRAM
-
Storage: 32GB onboard eMMC Flash
-
Wireless: Dual-band Wi-Fi (802.11 b/g/n/ac), Bluetooth 5.0
-
Networking: Gigabit Ethernet PHY with IEEE1588 support
-
USB: 1 × USB 2.0 interface
-
PCIe: 1 × PCIe Gen 2 ×1 lane
-
GPIO: 28 general-purpose I/O pins
-
Video Output: Dual HDMI (up to 4Kp60)
-
Camera/Display: MIPI CSI and DSI (2-lane and 4-lane)
-
Multimedia: H.265 (4Kp60), H.264 (1080p60/30), OpenGL ES 3.0
-
Power Input: 5V DC
-
Operating Temperature: –20°C to +85°C
-
Form Factor: 55 × 40 × 4.7mm
Typical Use Cases
Ideal for connected embedded systems such as industrial IoT devices, digital signage, portable media units, or wireless automation controllers with onboard flash memory.
