Product Overview

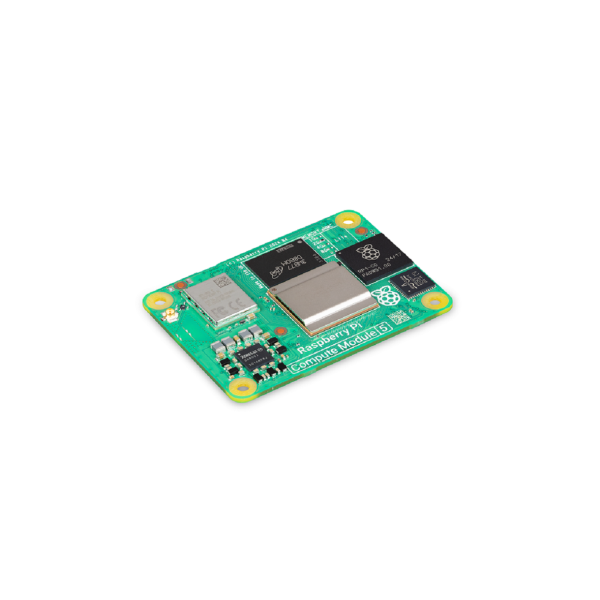

The Raspberry Pi Compute Module 5 (CM5108032) offers 8GB LPDDR4 RAM, 32GB of onboard eMMC Flash, and integrated wireless support (Wi-Fi 5 and Bluetooth 5.0). This powerful variant is ideal for embedded systems requiring both high memory and certified wireless communication – such as industrial controllers, edge platforms, or IoT deployments.
Technical Specifications
-
Processor: Broadcom BCM2712, quad-core Arm Cortex-A76 (64-bit) @2.4GHz
-
RAM: 8GB LPDDR4-4267 SDRAM with ECC
-
Storage: 32GB eMMC Flash (onboard)
-
Wireless: 802.11 b/g/n/ac Wi-Fi (2.4/5GHz), Bluetooth 5.0, BLE, onboard/external antenna switch
-
Video Output: 2 × HDMI 2.0 (up to 4Kp60 simultaneously)
-
Camera/Display: 2 × 4-lane MIPI CSI/DSI ports
-
USB: 1 × USB2.0, 2 × USB3.0 (5Gbps each)
-
Networking: Gigabit Ethernet PHY (IEEE 1588 support)
-
PCIe: 1 × PCIe Gen2 ×1 interface (5Gbps)
-
GPIO: Up to 30 GPIOs (1.8V or 3.3V)
-
Multimedia: 4Kp60 HEVC decoder, OpenGL ES3.1, Vulkan1.2
-
Dimensions: 55mm × 40mm × 4.7mm
-
Operating Temperature: –20°C to +85°C
-
Power Supply: +5V input (supports USB PD up to 5A)
Notes
Designed for high-performance connected embedded systems with wireless communication and onboard storage. Fully certified and supported through at least 2036.
