Product Overview

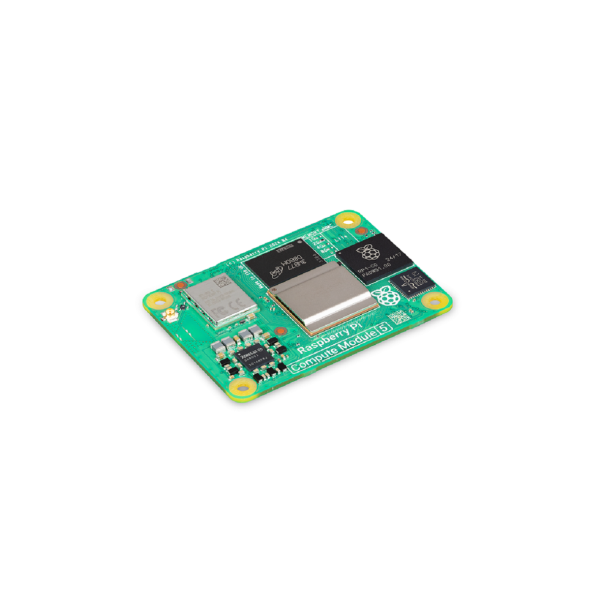

The Raspberry Pi Compute Module 5 (CM5108064) combines 8GB of LPDDR4 RAM and 64GB of onboard eMMC Flash with integrated wireless support (Wi-Fi 5 and Bluetooth 5.0). This top-tier variant is ideal for demanding embedded applications requiring both wireless connectivity and large onboard storage – including edge platforms, mobile control units, and industrial IoT environments.
Technical Specifications
-
Processor: Broadcom BCM2712, quad-core Arm Cortex-A76 (64-bit) @2.4GHz
-
RAM: 8GB LPDDR4-4267 SDRAM with ECC
-
Storage: 64GB eMMC Flash (onboard)
-
Wireless: 802.11 b/g/n/ac Wi-Fi (2.4/5GHz), Bluetooth 5.0, BLE, onboard/external antenna switch
-
Video Output: 2 × HDMI 2.0 (up to 4Kp60 simultaneously)
-
Camera/Display: 2 × 4-lane MIPI CSI/DSI ports
-
USB: 1 × USB2.0, 2 × USB3.0 (5Gbps each)
-
Networking: Gigabit Ethernet PHY (IEEE 1588 support)
-
PCIe: 1 × PCIe Gen2 ×1 interface (5Gbps)
-
GPIO: Up to 30 GPIOs (1.8V or 3.3V)
-
Multimedia: 4Kp60 HEVC decoder, OpenGL ES3.1, Vulkan1.2
-
Dimensions: 55mm × 40mm × 4.7mm
-
Operating Temperature: –20°C to +85°C
-
Power Supply: +5V input (supports USB PD up to 5A)
Notes
Built for wireless, high-performance embedded systems requiring large onboard storage. Fully certified and supported through at least 2036.
Product safety information
Manufacturer information:
Raspberry Pi Ltd.
Cambridge Science Park, Milton Road 194
Cambridge, Vereinigtes Königreich, CB4 0AB
compliance@raspberrypi.com
https://www.raspberrypi.com
Responsible person:
Raspberry Pi Ireland Limited
Dublin Landings 3
North Wall Quay, Dublin 1, Irland, D01 C4E0
compliance@raspberrypi.com
https://www.raspberrypi.com
| Item information |
Value |
| Connectivity: |
WiFi |
| RAM: |
8 GB |
