Product Overview

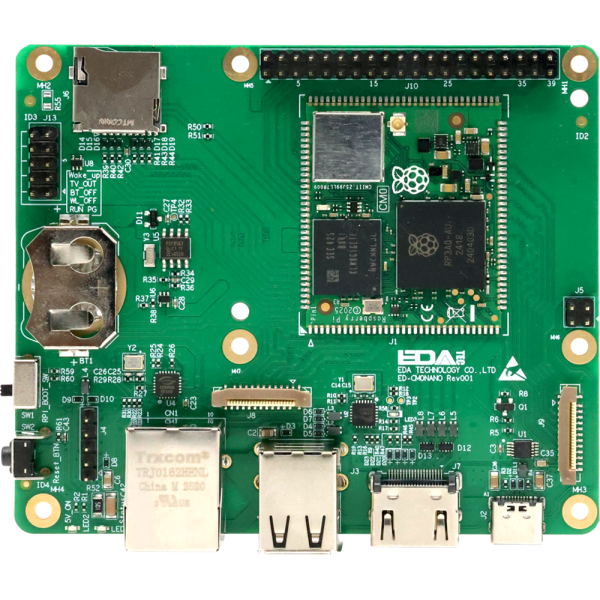

The EDATEC ED-CM0NANO-1000 is a compact single-board computer based on the Raspberry Pi Compute Module 0 Lite. Depending on the version, it uses a MicroSD card for boot and storage. With HDMI, 100M Ethernet, USB 2.0, MIPI DSI, MIPI CSI and a 40-pin GPIO, it is suitable for compact embedded and IoT platforms.
Technical Data
-
Processor: 1 GHz quad-core Arm Cortex-A53
-
Memory: 512 MB SDRAM
-
Storage: MicroSD boot (Lite version)
-
Network: 1 × 100M Ethernet
-
Video: 1 × HDMI
-
USB: 2 × USB 2.0
-
Camera/Display: 1 × MIPI CSI, 1 × MIPI DSI
-
GPIO: Raspberry Pi compatible 40-pin GPIO
-
Power supply: 5 V via USB Type-C
-
Additional functions: RTC and watchdog
Notes
Lite versions require a suitable MicroSD card for system boot. Suitability should be checked against the intended Compute Module 0 type and software image.
Application Areas
Embedded systems, IoT gateways, compact controllers, prototyping, lab setups and custom electronics solutions.
Product safety information
Manufacturer information:
EDA Technology Shanghai Co.,LTD
Room 301, Building 24, No.1661
Shanghai, China, 201899
support@edatec.cn
https://edatec.cn/
