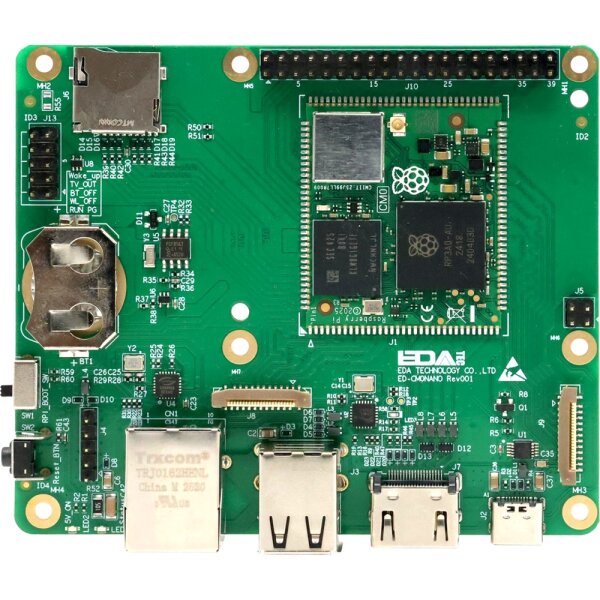

ED-CM0NANO - SINGLE BOARD COMPUTER - RASPBERRY PI CM0 - 8GB eMMC

SKU: JTL123002
HAN: ED-CM0NANO-10008
Category: Single Board Computer
Manufacturers: Edatec

The EDATEC ED-CM0NANO-10008 is a compact single-board computer system based on the Raspberry Pi Compute Module 0. In this version, the system boots from integrated eMMC storage, while the platform provides HDMI, Ethernet, USB and a Raspberry Pi compatible 40-pin GPIO. It is suitable for embedded systems, IoT applications and space-saving control solutions.

Price on request

Delivery time on request

Description
Notify me when this item is available

Product Overview

The EDATEC ED-CM0NANO-10008 is a compact single-board computer based on the Raspberry Pi Compute Module 0. Depending on the version, it uses integrated eMMC as the primary boot and storage medium. With HDMI, 100M Ethernet, USB 2.0, MIPI DSI, MIPI CSI and a 40-pin GPIO, it is suitable for compact embedded and IoT platforms.

Technical Data

Processor: 1 GHz quad-core Arm Cortex-A53
Memory: 512 MB SDRAM
Storage: 8 GB eMMC
Network: 1 × 100M Ethernet
Video: 1 × HDMI
USB: 2 × USB 2.0
Camera/Display: 1 × MIPI CSI, 1 × MIPI DSI
GPIO: Raspberry Pi compatible 40-pin GPIO
Power supply: 5 V via USB Type-C
Additional functions: RTC and watchdog

Notes

Lite versions require a suitable MicroSD card for system boot. Suitability should be checked against the intended Compute Module 0 type and software image.
