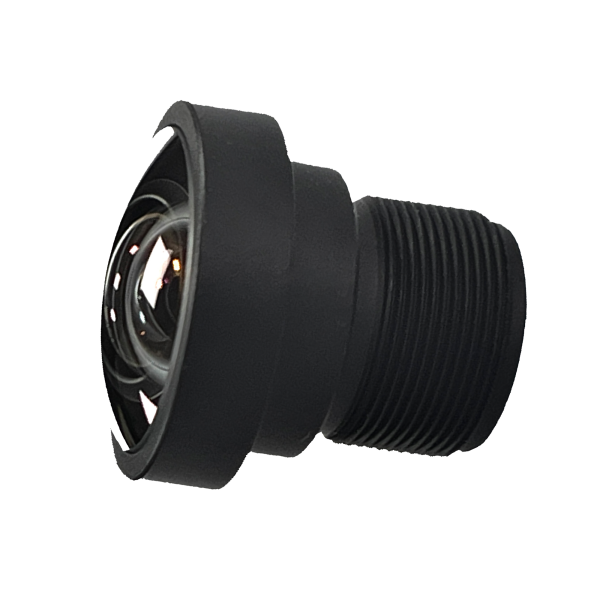

EDATEC 1/2.3'' M12 Mount 2.8mm Focal Length Wide Range Camera Lens 230280-08

SKU: JTL116651
HAN: ED-LENS-M12-230280-08
Category: Raspberry Pi
Manufacturers: Edatec

The EDATEC ED-LENS-M12-230280-08 is a 8-megapixel M12×P0.5 lens with 2.8mm focal length for cameras with an M12×P0.5 mount. It is designed for 1/2.3" sensors and provides a horizontal field of view of 102° on that format. With its F2.4 aperture and compact design, the lens is suitable for industrial imaging, embedded vision systems and demanding camera applications.

€ 7,40

incl. 19% VAT , plus

Delivery time on request

Description
Notify me when this item is available

Product Overview

The EDATEC ED-LENS-M12-230280-08 is a compact 1/2.3" M12×P0.5 lens with 8 megapixel resolution and an effective focal length of 2.8mm. It is designed for camera modules with an M12×P0.5 mount and provides a horizontal field of view of 102° on 1/2.3" sensors. With its F2.4 aperture, manual focus and compact mechanical design, it is suitable for industrial cameras, embedded vision applications and custom imaging systems.

Technical Data

Resolution: 8 megapixel
Optical format: 1/2.3"
Focal length: 2.8mm
Aperture: F2.4
Mount: M12×P0.5
Horizontal field of view: 102°
Focusing: Manual
Dimensions: Φ18×18.26
Weight: 6.7 g
Operating temperature: -20ºC to +70ºC

Notes

Suitability regarding sensor format, working distance and field of view should be checked against the camera module used before final selection. Actual imaging results also depend on the sensor, installation environment and lighting conditions.
