Product overview

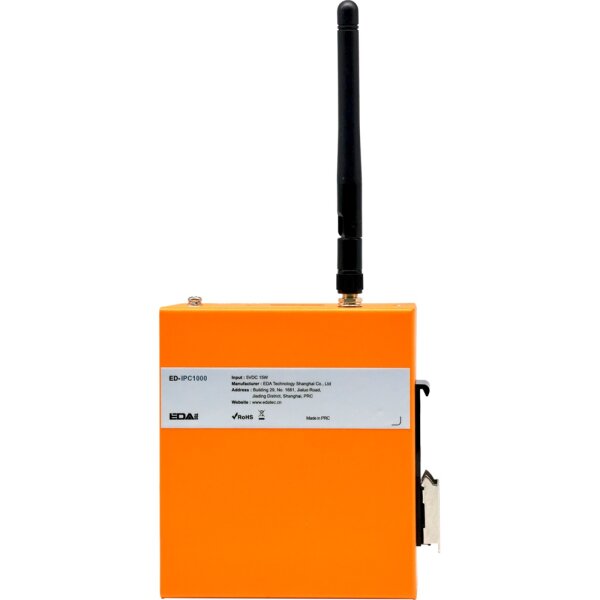

The EDATEC ED-IPC1000-10032 is an industrial computer based on Raspberry Pi CM0Lite. The system combines a 1 GHz quad-core 64-bit Arm Cortex-A53 processor with 512 MB SDRAM and 32 GB Micro SD card. Its integrated interfaces and DIN-rail mounting make it suitable as a compact control, gateway or IoT platform.
Technical specifications
- Manufacturer: EDATEC
- Model / HAN: ED-IPC1000-10032
- Platform: Raspberry Pi CM0Lite
- Processor: 1 GHz quad-core 64-bit Arm Cortex-A53
- Memory: 512 MB SDRAM
- Storage: 32 GB Micro SD card
- Graphics: OpenGL ES 1.1/2.0
- Video: H.264/MPEG-4 decoding and H.264 encoding up to 1080p at 30 fps
- 1 × HDMI Type-A, HDMI 1.3a, up to 1080p at 30 Hz
- 2 × USB 2.0 Type-A, up to 480 Mbps
- 1 × 10/100 Mbps Ethernet, RJ45
- 2.4 GHz Wi-Fi compliant with IEEE 802.11 b/g/n
- Bluetooth 5.0
- RTC with interface for a CR2032 backup battery
- Integrated watchdog
- Power input: 5 V DC via USB-C
- Power consumption: approximately 3.5 W
- Dimensions: 107.5 × 94.5 × 26 mm, excluding DIN-rail bracket and antenna
- Weight: approximately 320 g
- Operating temperature: -20 °C to +60 °C
- Installation: DIN rail
- Supported operating systems: Raspberry Pi OS Desktop and Lite, 32-bit and 64-bit
Notes
This variant uses the CM0Lite and is supplied with a 32 GB Micro SD card for system boot. According to the manufacturer, the Micro SD card slot is compatible with the CM0Lite only. An external Wi-Fi/Bluetooth antenna is provided for the wireless version. The unit uses passive cooling and is designed for DIN-rail installation.
Applications
Suitable for industrial control and automation, IoT gateways, data acquisition, equipment connectivity, edge applications and compact embedded systems.
