Product overview

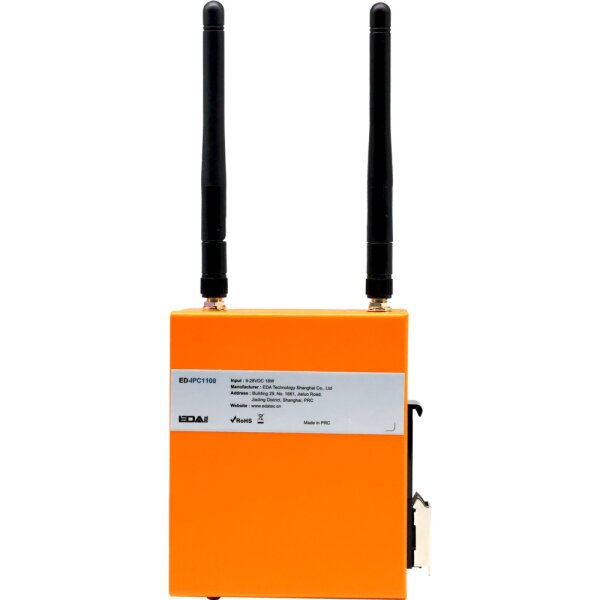

The EDATEC ED-IPC1100-10008-4EU is an industrial computer based on Raspberry Pi CM0. It combines a 1 GHz quad-core 64-bit Arm Cortex-A53 processor, 512 MB SDRAM and 8 GB eMMC with wired and wireless connectivity. This variant includes Wi-Fi/Bluetooth and the EC800K-EU 4G CAT1 module for Europe and is designed for DIN-rail installation.
Technical specifications
- Manufacturer: EDATEC
- Model / HAN: ED-IPC1100-10008-4EU
- Platform: Raspberry Pi CM0
- Processor: 1 GHz quad-core 64-bit Arm Cortex-A53
- Memory: 512 MB SDRAM
- Storage: 8 GB eMMC
- 1 × HDMI Type-A, HDMI 1.3a, up to 1080p at 30 Hz
- 2 × USB 2.0 Type-A, up to 480 Mbps
- 1 × 10/100 Mbps Ethernet, RJ45
- 1 × RS485 via 3-pin 3.5 mm Phoenix terminal
- 2.4 GHz Wi-Fi compliant with IEEE 802.11 b/g/n
- Bluetooth 5.0
- 4G CAT1: EC800K-EU (Europe)
- 4G bands: LTE FDD B1/B3/B5/B7/B8/B20/B28
- 1 × Nano SIM card slot
- RTC with 1 F supercapacitor as backup power supply
- Power input: 9 to 28 V DC via 5.5 × 2.5 mm DC jack
- Reverse-polarity protection on the power input
- Power consumption: approximately 5 W
- Dimensions: 104 × 86.4 × 26 mm, excluding DIN-rail bracket and antennas
- Weight: approximately 270 g
- Operating temperature: -20 °C to +60 °C
- Installation: DIN rail
- Supported operating systems: Raspberry Pi OS Desktop and Lite, 32-bit and 64-bit
Notes
According to EDATEC, this configuration is a standard-stock version with Wi-Fi/Bluetooth, 8 GB eMMC and a regional 4G module. A Wi-Fi/Bluetooth antenna and a 4G antenna are included with this model. Heat is dissipated passively through the metal enclosure.
Applications
Suitable for industrial IoT gateways, remote connectivity, machine and equipment integration, data acquisition, compact control systems and connected embedded applications requiring cellular communication.
