Product Overview

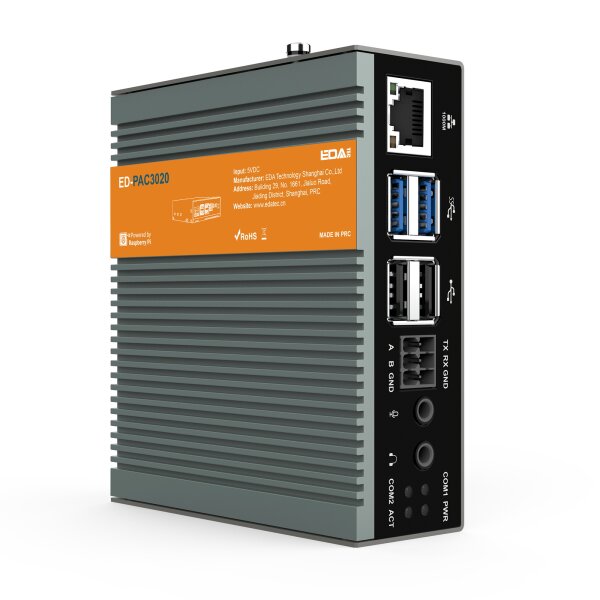

The EDATEC ED-PAC3020-021-P is a real-time CODESYS programmable automation controller based on the Raspberry Pi 5. It is designed for IEC 61131-3 programming, multicore runtime, real-time control and optional motion control applications. With Ethernet, USB, RS232, RS485, M.2 storage options and support for EtherCAT, Modbus, CANopen and PROFINET, it is suitable for demanding automation tasks.
Technical Data
-
Processor: Broadcom BCM2712 quad-core Cortex-A76, 2.4 GHz
-
Memory: 2 GB or 8 GB LPDDR4
-
Storage: M.2 B-Key for optional SSD
-
Runtime: CODESYS Control real-time, multicore
-
Programming: IEC 61131-3, e.g. ST, LD, FBD, SFC, CFC
-
Fieldbus: EtherCAT Master, Modbus TCP, CANopen, Modbus Serial, PROFINET
-
Interfaces: Gigabit Ethernet, 2 × USB 3.0, 2 × USB 2.0, RS232, RS485
-
Additional functions: RTC, optional supercapacitor
Notes
Licensing and the scope of CODESYS, SoftMotion, CNC/Robotics or visualisation functions depend on the specific software configuration.
Application Areas
PLC control, motion control, machine automation, real-time control, test rigs and industrial edge automation.
