Product Overview

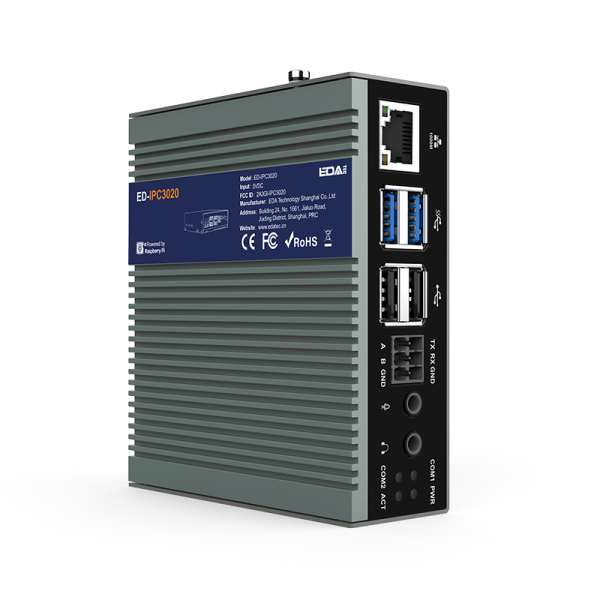

The EDATEC ED-IPC3020-08002 is an industrial computer based on the Raspberry Pi 5 for industrial control, edge computing and IoT gateway applications. Depending on the series, the platform provides different communication, I/O and storage options in a metal enclosure with DIN-rail mounting. With its wide DC input range, industrial interfaces and optional wireless expansion, the system is suited to demanding industrial environments.
Technical Data
-
Processor: Broadcom BCM2712 quad-core Cortex-A76, 2.4 GHz
-
Power supply: 5 V DC via USB-C
-
Mounting: DIN-rail, metal enclosure
-
Memory: 4 GB to 16 GB LPDDR4X depending on version
-
Storage: MicroSD and optional M.2 NVMe SSD
-
Network: 1 × Gigabit Ethernet, optional PoE
-
Video: Dual 4Kp60 HDMI
-
USB and audio: 2 × USB 3.0, 2 × USB 2.0, audio input/output
-
Serial interfaces: 1 × RS232, 1 × RS485
-
Additional functions: RTC, optional supercapacitor, buzzer
Notes
The specific version may differ in RAM, SD card, SSD population and PoE module.
Application Areas
Industrial edge computers, audio and visualisation solutions, control technology, IoT gateways and technical lab setups.
