Product Overview

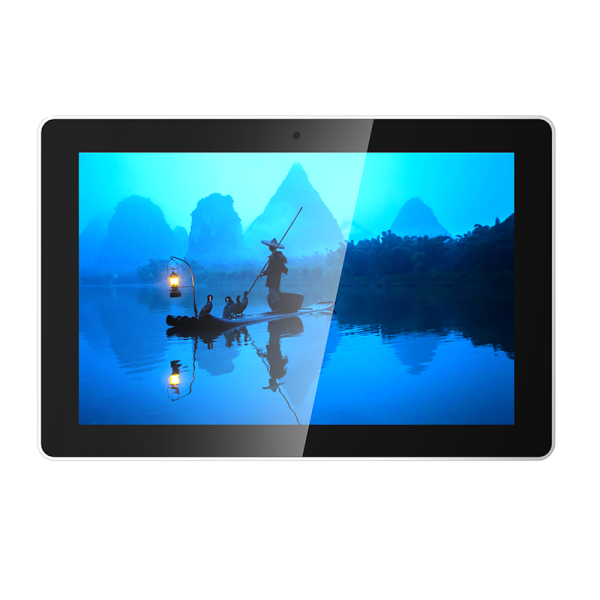

The EDATEC ED-HMI3020-101C-08320 is a 10.1-inch industrial HMI based on the Raspberry Pi 5. It combines a touchscreen display with industrial interfaces, embedded or VESA mounting options and an enclosure design intended for series deployment. This makes the platform suitable for operator panels, visualisation, data acquisition and Raspberry Pi based industrial applications.
Technical Data
-
Display size: 10.1 inch
-
Resolution: 1280 × 800
-
Touch: Capacitive multi-touch
-
Processor: Broadcom BCM2712 quad-core Cortex-A76, 2.4 GHz
-
Memory: 4 GB to 16 GB LPDDR4X depending on version
-
Storage: MicroSD and optional M.2 NVMe SSD
-
Network: 1 × Gigabit Ethernet, optional PoE
-
USB and audio: 2 × USB 3.0, 2 × USB 2.0, audio input/output, speaker
-
Serial interfaces: 1 × RS232, 1 × RS485
-
Options: optional front camera, RTC, supercapacitor
-
Power supply: 5 V DC via USB-C
Notes
RAM, SD card, SSD population, front camera and PoE support vary depending on the version.
Application Areas
Operator panels, industrial visualisation, audio/control systems, data acquisition and high-performance Raspberry Pi 5 HMI solutions.
