Product Overview

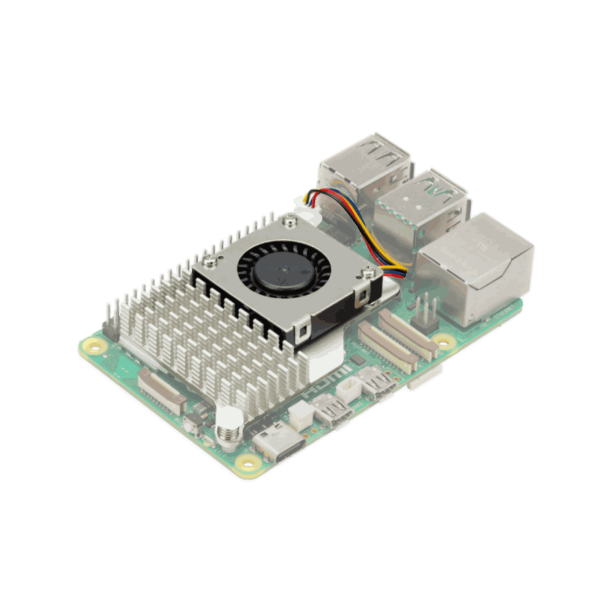

The Raspberry Pi Active Cooler SC1148 is an active cooling solution specifically designed for Raspberry Pi 5. It combines a single-piece aluminium heatsink with a temperature-controlled blower fan to help dissipate heat efficiently from the board.
The Active Cooler is suitable for applications where Raspberry Pi 5 is operated under higher sustained loads. Mounted directly onto the board, it helps maintain a stable operating temperature and supports reliable performance in demanding projects.
Technical Specifications
- Compatibility: Raspberry Pi 5
- Product type: Active cooler
- Heatsink: Single-piece anodised aluminium heatsink
- Fan: Temperature-controlled blower fan
- Mounting: Spring-loaded push pins for attachment to Raspberry Pi 5
- Heat transfer: Pre-applied thermal pads
- Power input: 5 V DC via the four-pin fan connector on Raspberry Pi 5
- Fan control: PWM control with tachometer
- Maximum airflow: 1.09 CFM
- Maximum fan speed: 8000 RPM ±15%
- Material: Anodised aluminium
Notes
This product is the Raspberry Pi Active Cooler SC1148 and not a case. Raspberry Pi 5 is not included.
The Active Cooler is designed for direct installation on Raspberry Pi 5. Once fitted, the cooler should not be removed where possible, as removing it may damage or degrade the push pins and thermal pads.
Application Areas
- Cooling Raspberry Pi 5 under sustained higher system loads
- Development, testing and maker projects
- Embedded applications with increased cooling requirements
- Projects without a case where direct active cooling is required
- Compute-intensive applications where stable operating temperature is important
